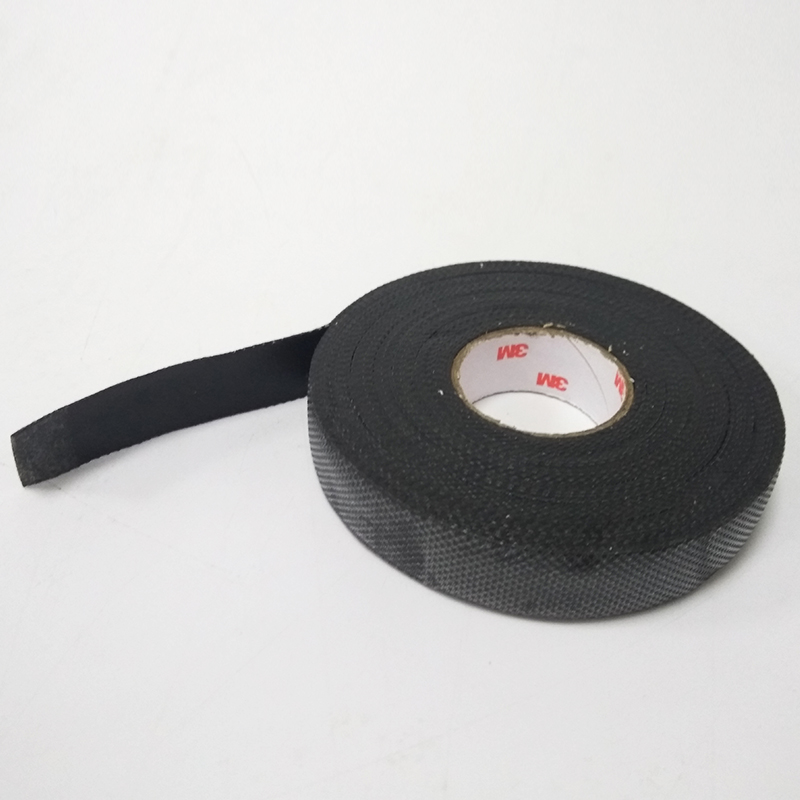

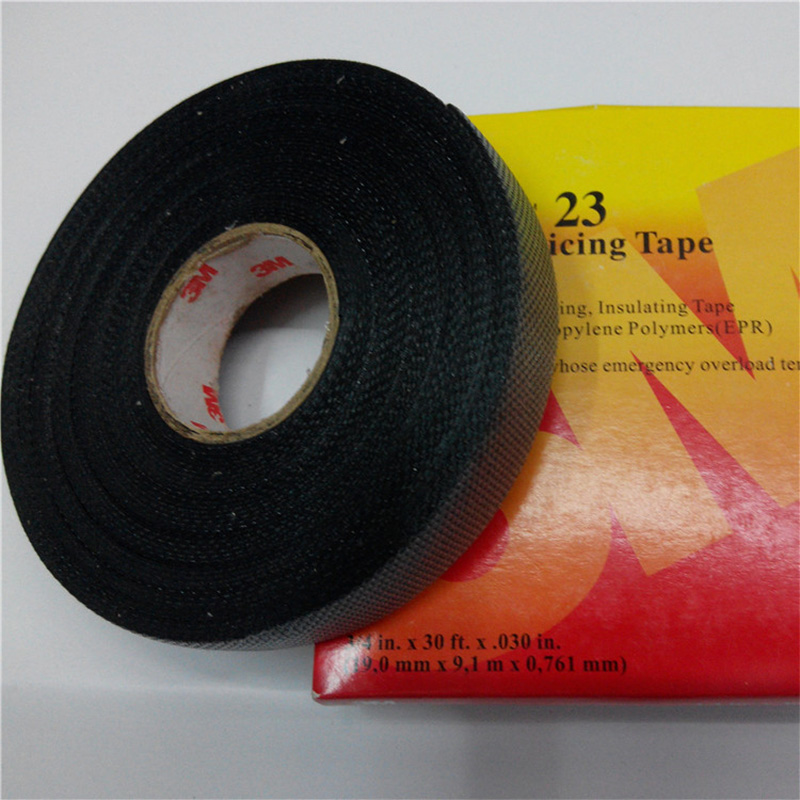

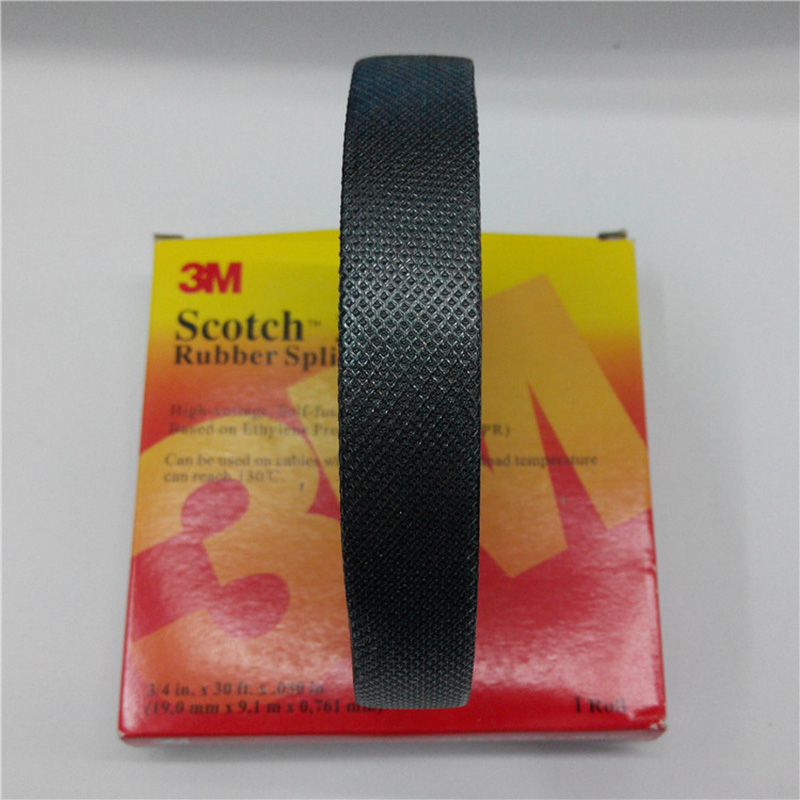

3M insulating tape high voltage scotch 23 rubber splicing tape 19mm x 9.1m

Voltage=69KV

Product Specification:
  • Name : 3m scotch 23
  • Color : Black
  • Size : 19mm x 20.1m
INQUIRY NOW
Product Details

1. Rubber resin provides excellent adherence to irregular surfaces 3m scotch 23

2. Primary electrical insulation for splicing cable from 600V to 69 kV on all solid dielectric cables

3. Suitable for jacketing high-voltage splices and terminations

3M insulating tape, 3m scotch 23

Attribute Name

Value

Adhesion to Steel

5,5 N/cm

Adhesive Material

Rubber Resin, Thermosetting Rubber

Applications

Electrical Maintenance, Insulation

Breaking Strength

25 N/cm, 8 lb/in

Color

Black, Cream

Dielectric Strength (V/mil)

800, 800 V/mil

Emergency Overload Temperature (Celsius)

130°C

Insulated

Yes

Insulation Resistance

> 10^6 megohms

Length

20 Linear Foot, 30 Linear Foot

Material

EPR with Liner

Maximum Operating Temperature (Celsius)

90 Degree Celsius 3m scotch 23

Maximum Operating Temperature (Fahrenheit)

194 Degree Fahrenheit

Product Markets

Electrical Construction, Electrical MRO, Power Distribution

Product Type

Rubber and Splicing Tapes

RoHS EU Comments

RoHS 2011/65/EU compliant without exemption

Shelf Life

5 Year 3m scotch 23

Solution for

Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing

Suitable for High Voltage

Yes

Tape Color

Black

Voltage

69 kV 3m scotch 23

Voltage Application

All voltage classes

3M insulating tape3m scotch 23 3m scotch 23

Welcome to inquire 3M insulating tape, 3m scotch 23
