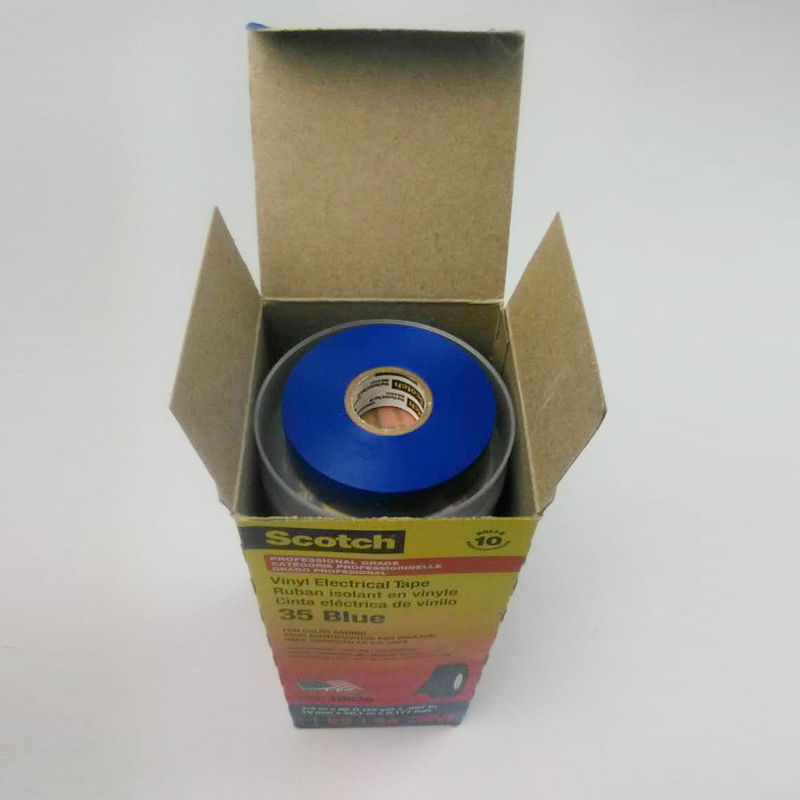

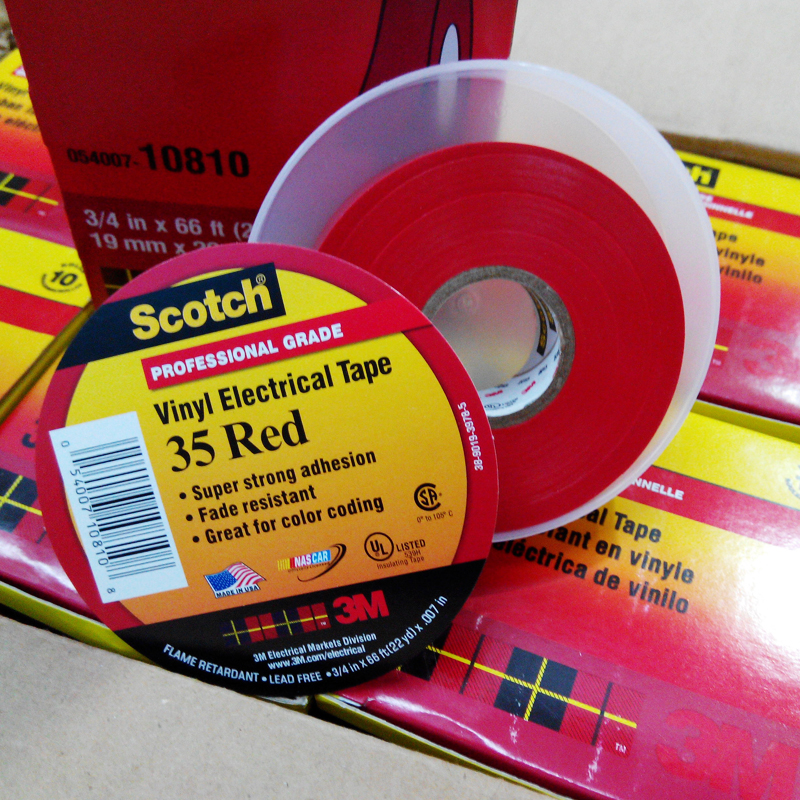

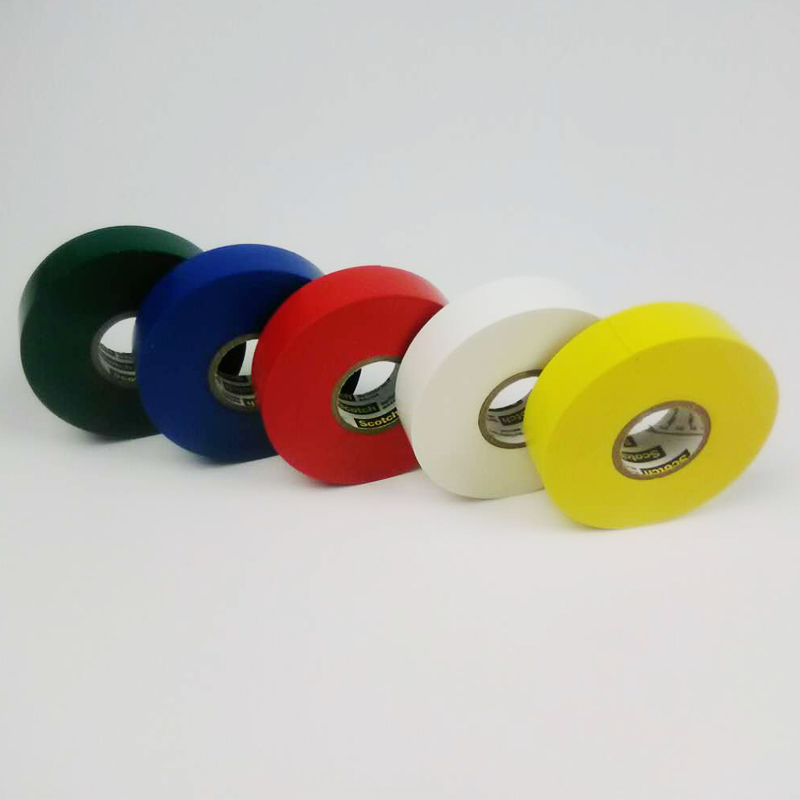

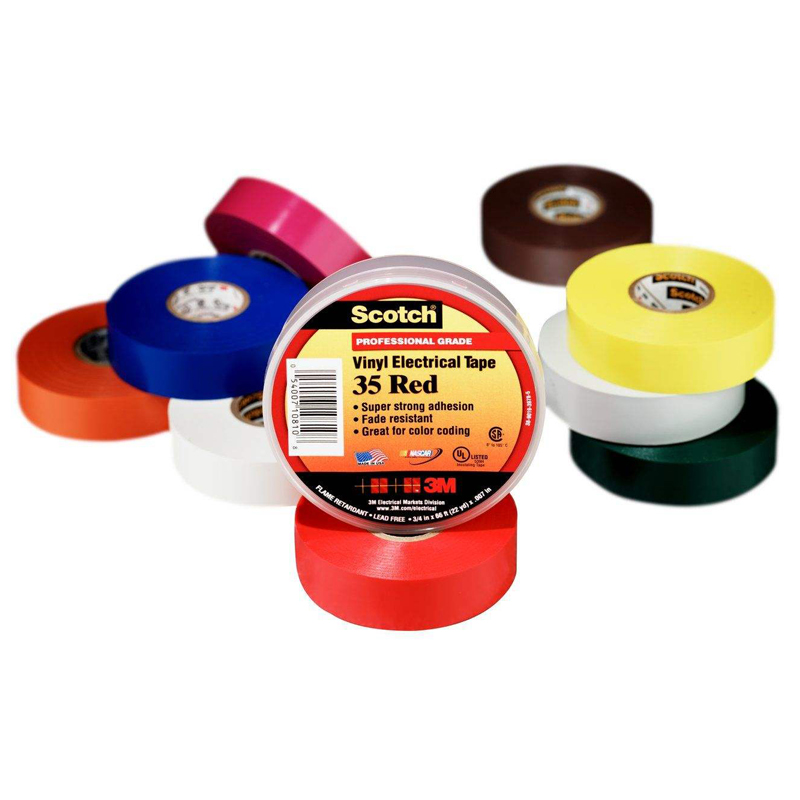

3M Electrical Insulating Tape 35 Scotch Vinyl Electrical Tape 35

9 Color for choose. Red ,Blue, Yellow, Green, White, Black,Brown, purple, orange   1. Excellent electrical and mechanical protection from combined pressure-sensitive, rubber-resin adhesive and PVC backing 2

Product Specification:
  • Name : 35 PVC Insulation Adhesive Tape
  • Size : 19mm x 20.1m
  • Color : Blue, Green, Red, yellow, white
  • :
  • :
INQUIRY NOW
Product Details

1. Excellent electrical and mechanical protection from combined pressure-sensitive, rubber-resin adhesive and PVC backing

2. Pressure sensitive rubber adhesive bonds easily and securely

3.Suitable for use in phase identification, color coding of motor leads and piping systems and for marking safety areas

4.Tensile strength rating of 17 lbs. per inch meets professional electrical standards



Attribute Name

Value

Adhesion to Steel

2,2 N/cm, 20 oz/in (2,2 N/cm)

Adhesion to Steel oz/in (N/100 mm)

30 (33), 40 (44)

Adhesive Material

Rubber Resin

Agency Approvals

CSA Certified, UL Listed

Applications

Electrical Maintenance

Backing Material

Polyvinyl Chloride, Vinyl

Backing Thickness (metric)

0.18 mm

Breaking Strength

17 lb/in

Color

Blue, Brown, Gray, Green, Multi-Color, Orange, Pink, Red, Violet, White, Yellow

Dielectric Strength (V/mil)

1250, 1250 V/mil

Material

PVC

Operating Temperature Range (Celsius)

0 °C to 105 °C

Product Type

Vinyl Electrical Tapes

RoHS 2011/65/EU Compliant

Yes


3M 35scotch 35tape 35
