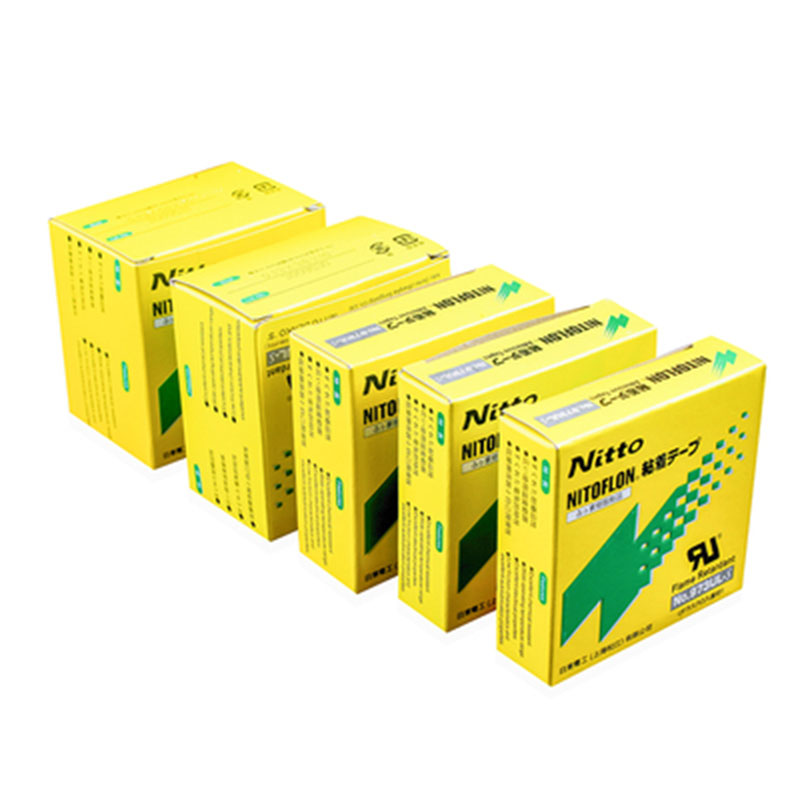

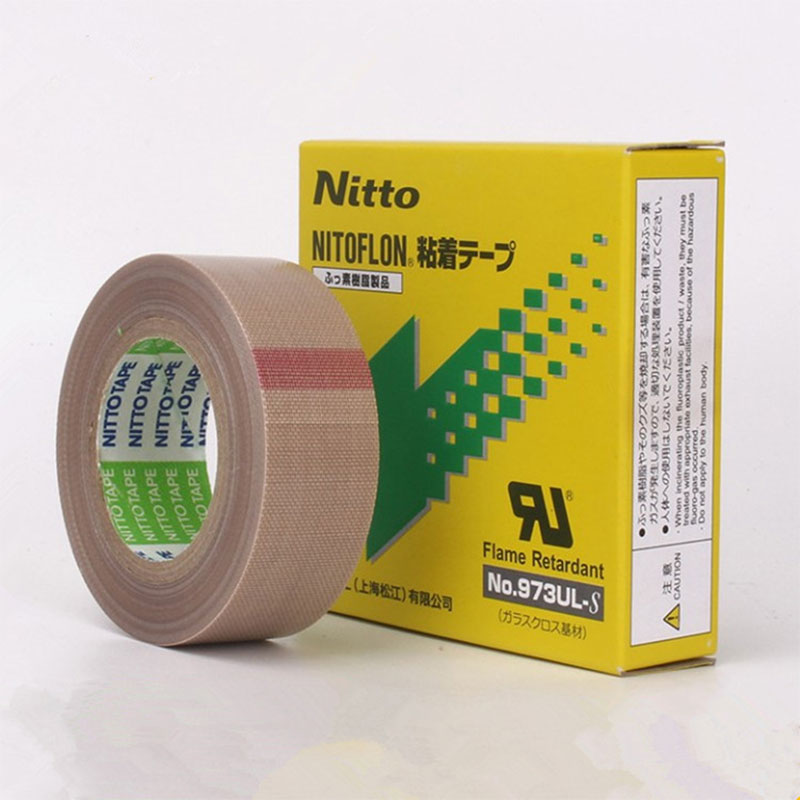

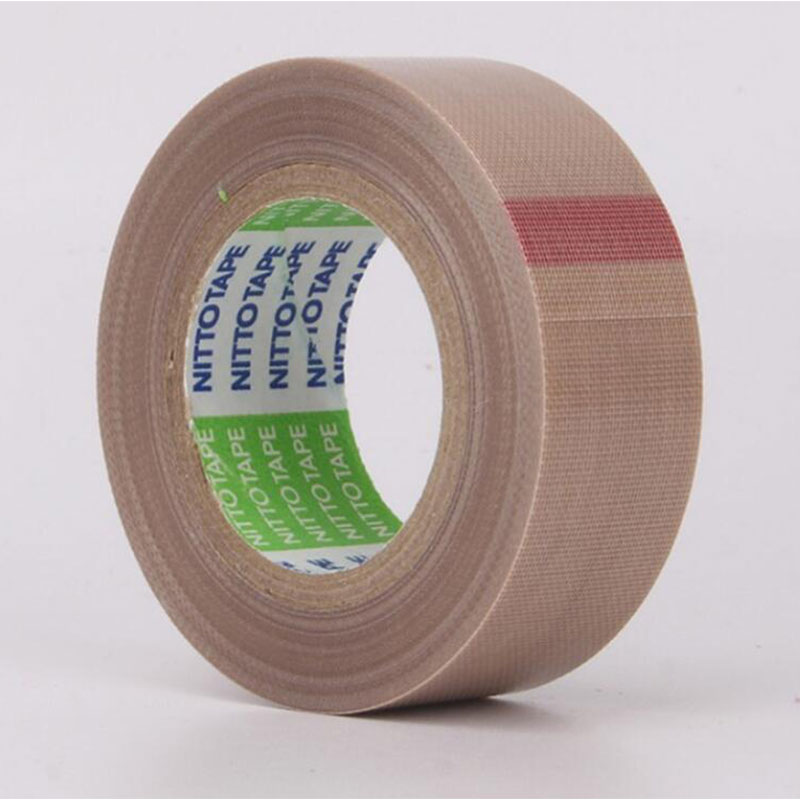

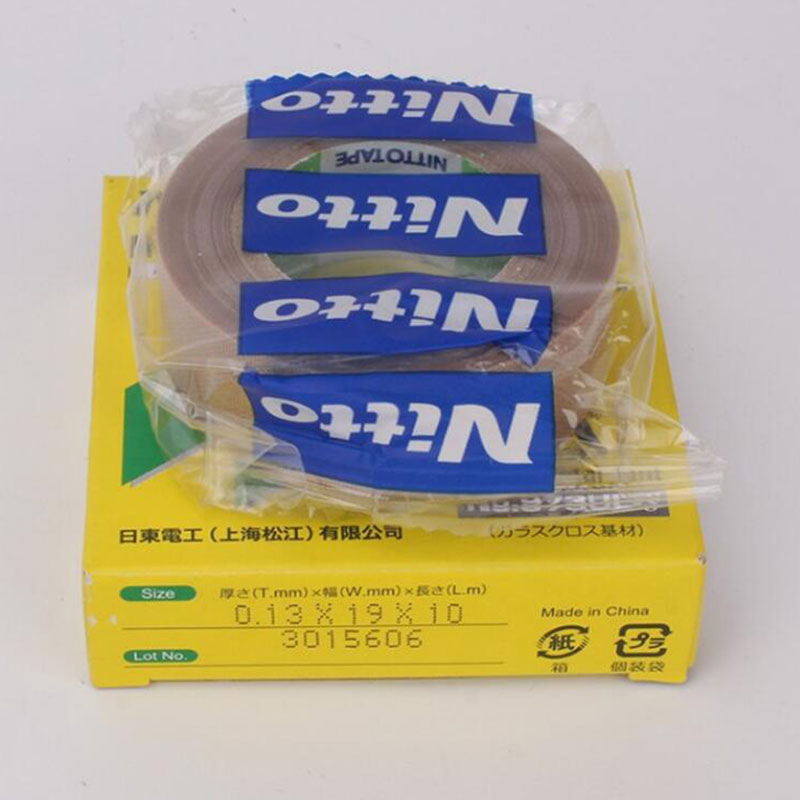

Japan Nitto Electrical Tape PTFE Adhesive 973UL Nitto Denko Tape 0.13mm Thick

Brand :Nitto

Product Specification:
  • Name : PTFE Adhesive 973UL
  • Wide : 13mm ,19mm, 25mm, 38mm, 50mm, 60mm, 70mm, 200mm, 300mm, 600mm
  • Length : 10meter
  • Color : Grey
INQUIRY NOW
Product Details

Nitto electrical tape, Nitto denko tape, PTFE Adhesive 973UL

Original Japan
Ahesive Side Single Side
Product name PTFE Masking Tape
Material  PTFE
Thickness 0.13mm

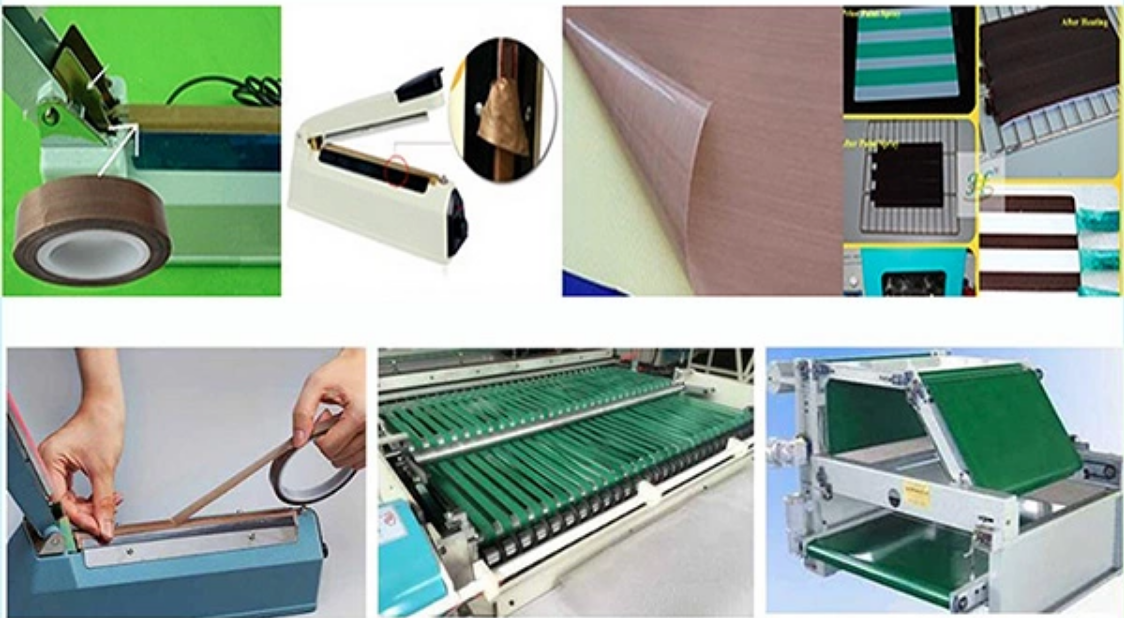

Application: Sealing machine,Packaging, Heat moulding, Laminating etc

nitto electrical tape

Product Description

PTFE Masking Tape  using an orange-colored specially oriented polytetrafluoroethylene (PTFE) film as base material. Single surface treated and coated with a silicone adhesive which has a high heat resistance. The tape offers excellent features such as electrical properties, heat resistance, chemical resistance and non-adhesiveness.



Features

  •   UL510 certified.

  • Environment-friendly and conforms to Notification No.20 of the Ministry of Health, Labor and Welfare.
  • Superior mold-releasing and sliding properties.
  • Good holding property at elevated temperatures and dimensional stability.
  • The non-adhesive side exhibits excellent characteristics of polytetrafluoroethylene such as electrical properties, resistance to heat, weather, chemical, and water (water-shedding), and non-adhesiveness.
Item Unit No.973UL-S No.973UL Test Method
Thickness mm 0.13 0.15 0.18 Compatible with JIS C 2107
Tensile strength N/19mm 240 590 530
Adhesive strength 25°C N/19mm 6.8 9.0 9.7
100°C 3.2 3.9 4.7
150°C 2.2 2.6 3.0
Unwinding force N/19mm 5.9 5.9 7.5
Temperature range °C -60~200 -

Application

nitto denko tape

Japan Denko Nitto PTFE Adhesive No. 973ul-s PTFE Masking Tape 0.13mm Thick Widely used for:

  • For roll wrapping of polyethylene laminators (Suitable for long continuous use as the tape has superior durability and mechanical strength).
  • For endless belts of polyethylene laminators (Time for changing tapes upon dimensional change of laminated products can be shortened by making a double-layered endless belt by bonding the adhesive sides of No.923S together, or, depending on application, with NITOFLON No.923UL or 923S).
  • For insulation of coils as a class H insulating material.
  • Can be laminated with metals, plastics and ceramics as general sliding materials.

PTFE Adhesive 973UL
