Material: PTFE Film
Product Specification:
These Machine accessories May you like
| Color | Grey |
| Thickness | 0.08mm/0.18mm |
| Short-term heat resistance | 300℃ |
| Continuous heat resistance | -60~280℃ |
| Material | PTFE Film |
| Adhesive | Silicone |

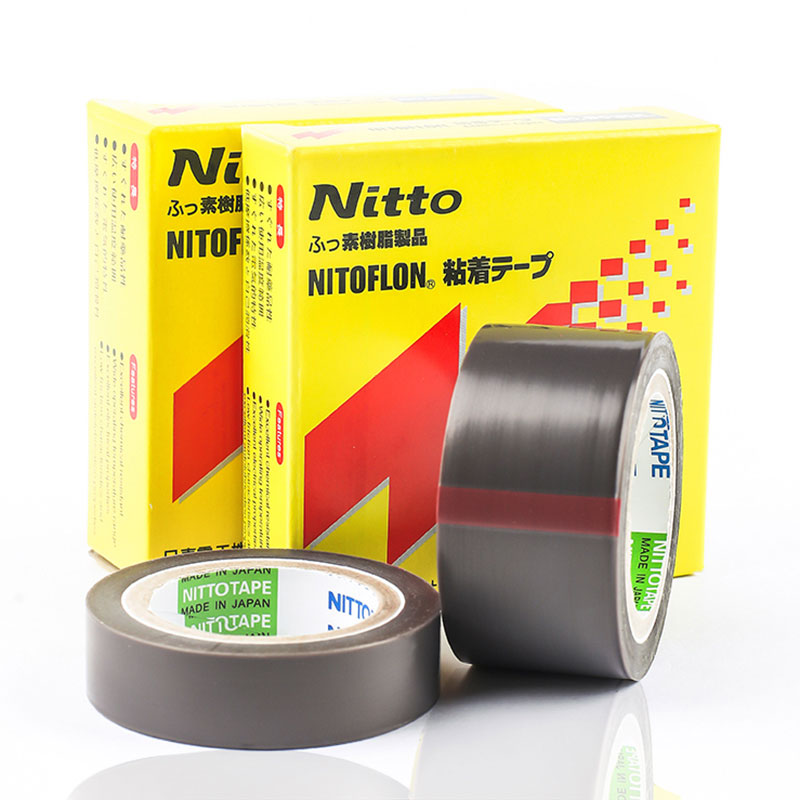

Nitoflon Adhesive Tape 903ul, Nitto Denko Heat Resistant,nitoflon
Single surface treated polytetrafluoroethylene (PTFE) film base tape coated with silicone adhesive with excellent heat resistance. Along with great electrical characteristics, the tape has a number of excellent features, such as heat resistance, chemical resistance, low friction coefficient and non-adhesiveness. nitto tape nitoflon
Features
1. UL510 certified.
2. Superior in mold-releasing and sliding property.
3. Uses the Class H insulating material. nitto tape nitoflon
4. Superior flame resistance.
5.Nonadhesive side of the tape offers excellent characteristics of polytetrafluoroethylene, such as electrical property, resistance to heat, weather, chemical, and water (water -shedding), low friction coefficient and non-adhesiveness.
6. Can smoothly adhere, wind, band and seal, just like regular adhesive tapes. nitto tape nitoflon
Applications
Widely used in:The food industry, printing industry, industry, chemical industry, etc
Technical Data nitto tape nitoflon
Technical Data
|
Item |
Characteristic Value |
|||
|
No.903UL |
||||
|
Thickness (mm) |
0.08 |
0.13 |
0.18 |
0.23 |
|
Tensile strength (N/19mm) |
55 |
93 |
160 |
210 |
|
Adhesive strength*1 (N/19mm) |
5.6 |
7.1 |
7.4 |
8.7 |
|
Rewinding force(N/19mm) |
4.4 |
5.8 |
7.1 |
8.9 |
|
Breakdown Voltage (KV) |
8 |
11 |
14 |
15 |
|
Temperature range(℃) |
-60~280 |
|||
More Sizes
More Specification
|
Type (Nitto Denko) |
Spec. |
|
923S |
T0.10mm* W38/50mm* L33m |
|
903UL |
T0.08mm* W13/15/19/25/38/50/100/250/300/540mm* L10m |
|
903UL |
T0.18mm* W18/19/300mm* L10m |
|
903UL |
T0.13mm* W19mm* L10m |
|
973UL-S |
T0.13mm* W10/13/19/25/38/50/75/100/300/600mm* L10m |
|
973UL |
T0.18mm* W19/25/50mm* L10m |
|
975 |
T0.12mm* W13/19/25/30/38/50/200/300mm* L10m |
|
970-2UL |
T0.07mm* W650mm* L10m |
Welcome to inquire Nitoflon Adhesive Tape 903ul, Nitto Denko Heat Resistant,nitoflon
