3M Single Tape Die-cutting

100mm x 300meter ,3M Laser Markable Label Material 7847

Barcode labels

Product Specification:
  • Name : Label Material 7847
  • Size : 100mm x 300m
  • Color : Black
INQUIRY NOW
Product Details

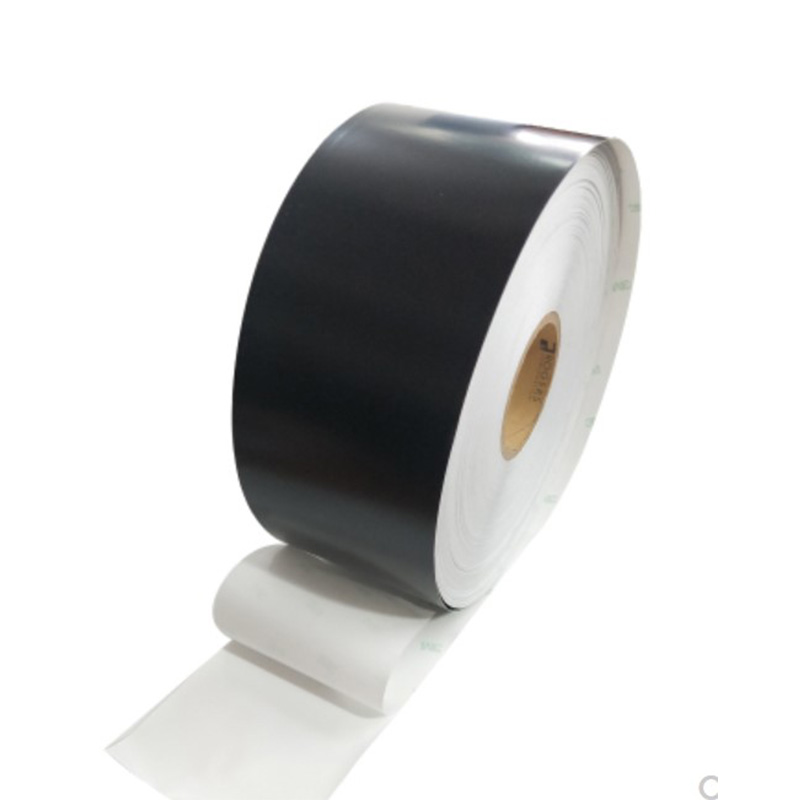

100mm x 300meter ,3M Laser Markable Label Material 7847

Property Values
Facestock Thickness 0.06mm
Adhesive #350 high-holding acrylic
Adhesive thickness 0.03mm
Liner Densified Kraft
Liner Thickness 0.077mm
Tensile Strength 28 N/cm
Elongation at Break ca. 5 %
Minimum Application Temperature 4 °C

Product Description

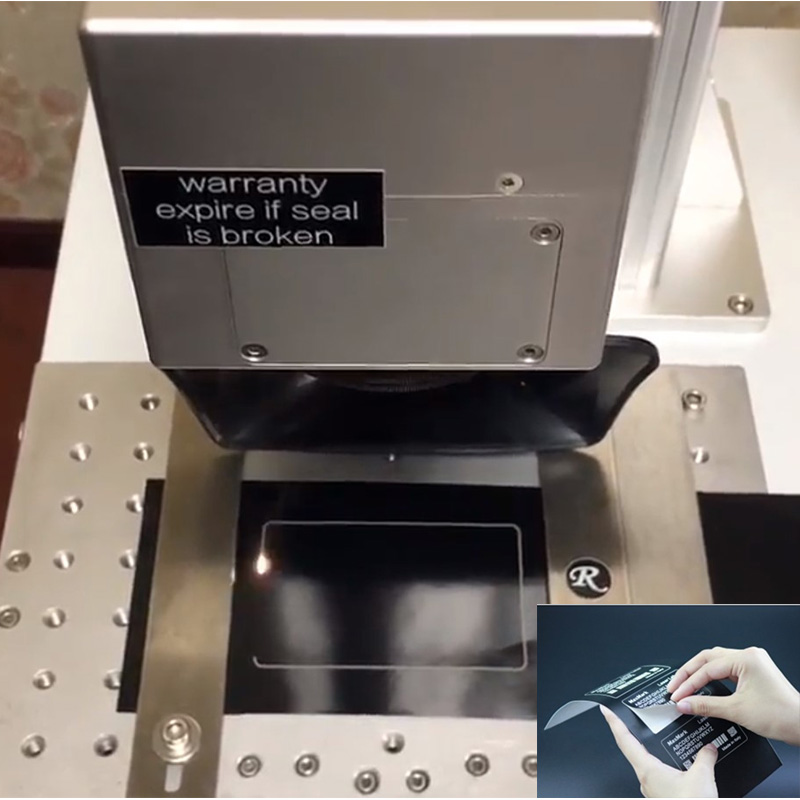

Laser Markable Label Material 7847 are specialty film label materials where a laser can ablate the top layer of a dual layer facestock to create an image. The same laser can also kiss cut the label to size, maximizing flexibility for producing variable labels for durable applications.

Product Features
• Cast modified acrylate facestock offers long-term durability and excellent abrasion, temperature, chemical and environmental resistance

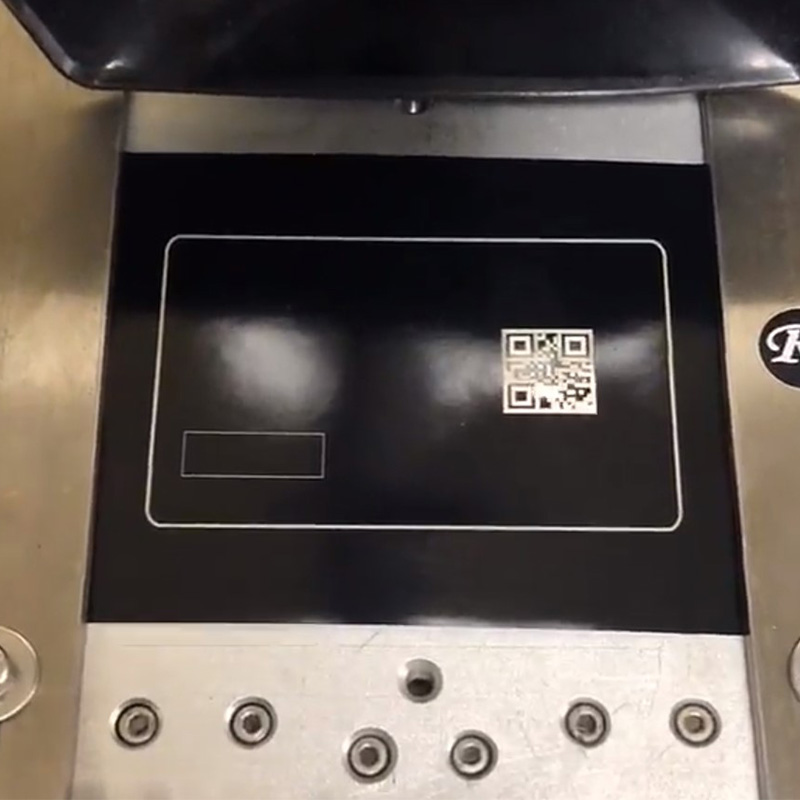

• High-resolution and high-contrast images markable with standard Nd-Yag lasers for smaller barcodes, 2-D symbologies and fine point text.
• Excellent convertability (“kiss cutting”) of acrylate facestock on densified kraft liner.
• Matte surface provides good printability resulting in excellent bar code readability.
• 3M High Performance Acrylic Adhesive 350 provides reliable, permanent adhesion to LSE plastics, oily metals, powder coatings and textured surfaces.
• Brittle facestock material provides destructibility to meet security labeling requirements.
• No corrosive emissions during the laser marking process.
• UL Recognized Component under file MH11410.
• CSA Recognized Component under file 99316.

Application Ideas
• Durable goods marking
• Under hood labels
• Barcode labels
• Process labeling in-plant
• Asset labels
• Security labels
• Information labels with 2-D symbologies
