3M Single Tape Die-cutting

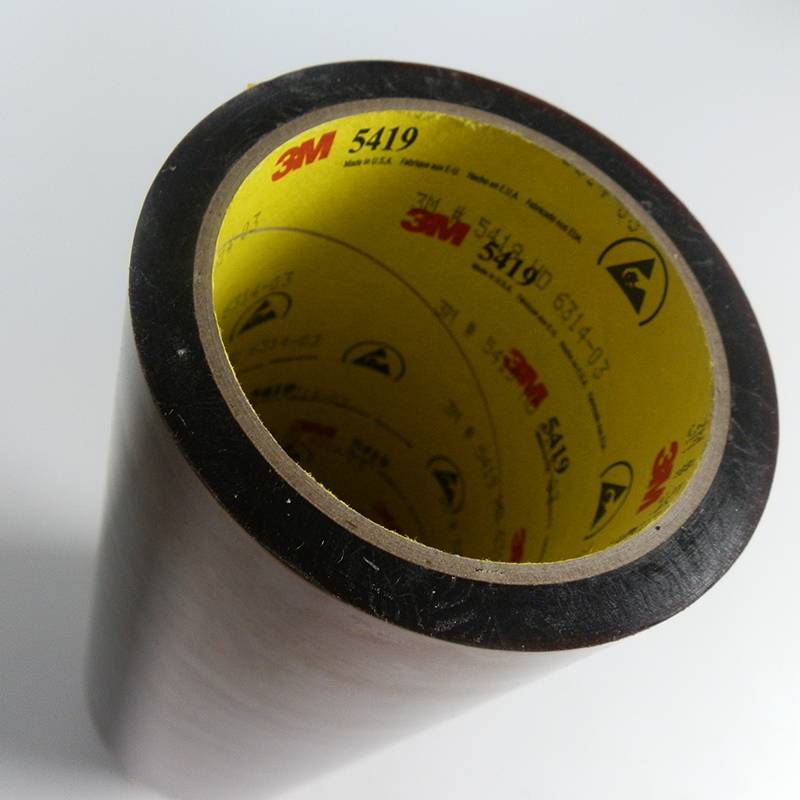

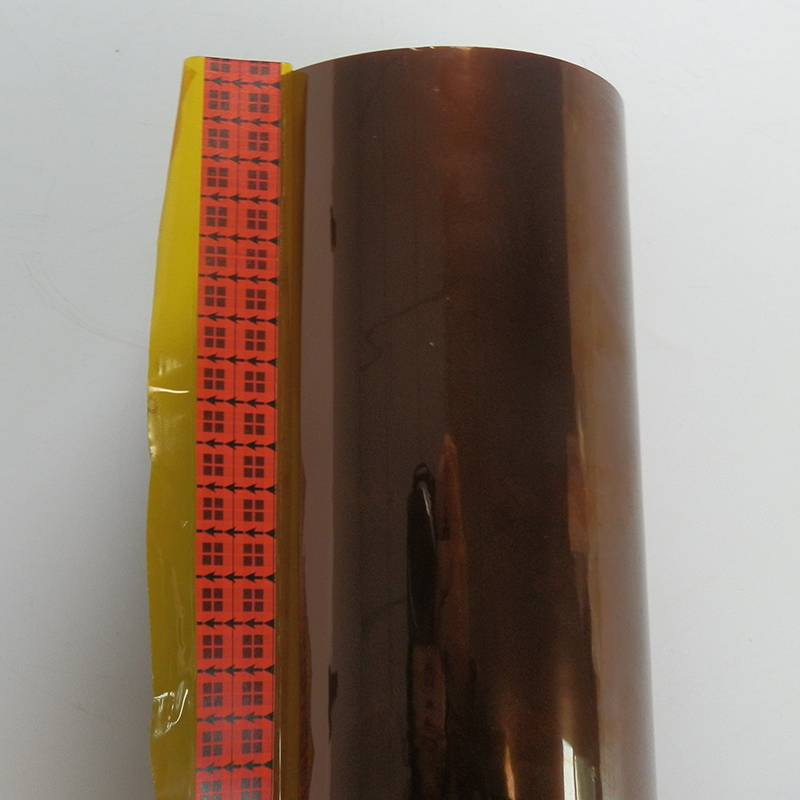

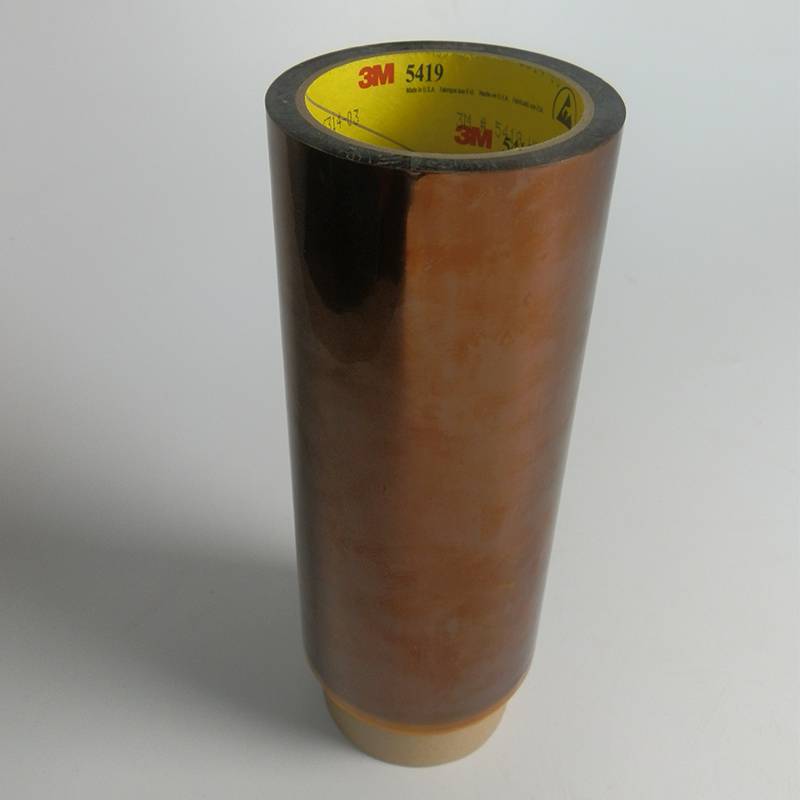

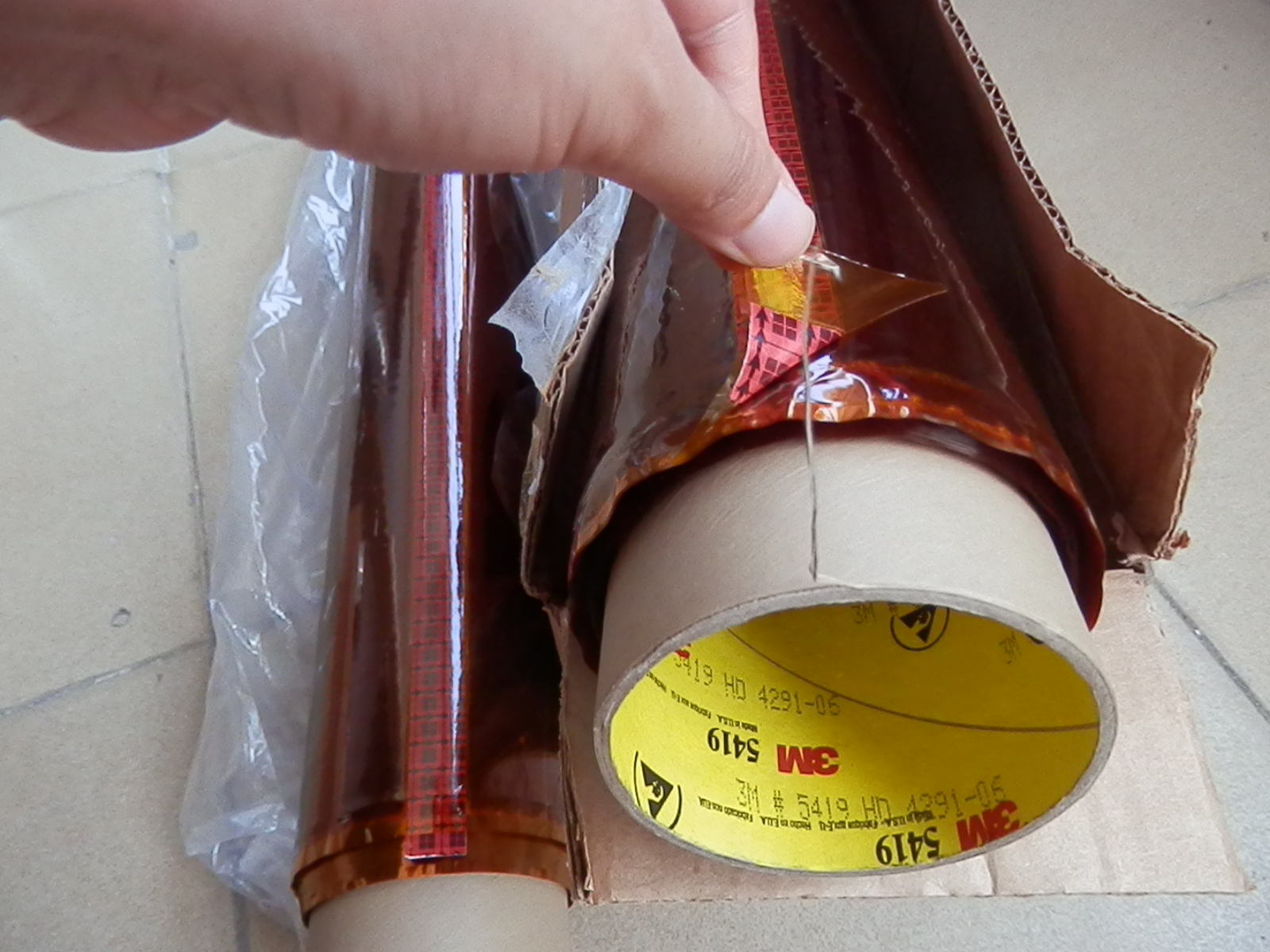

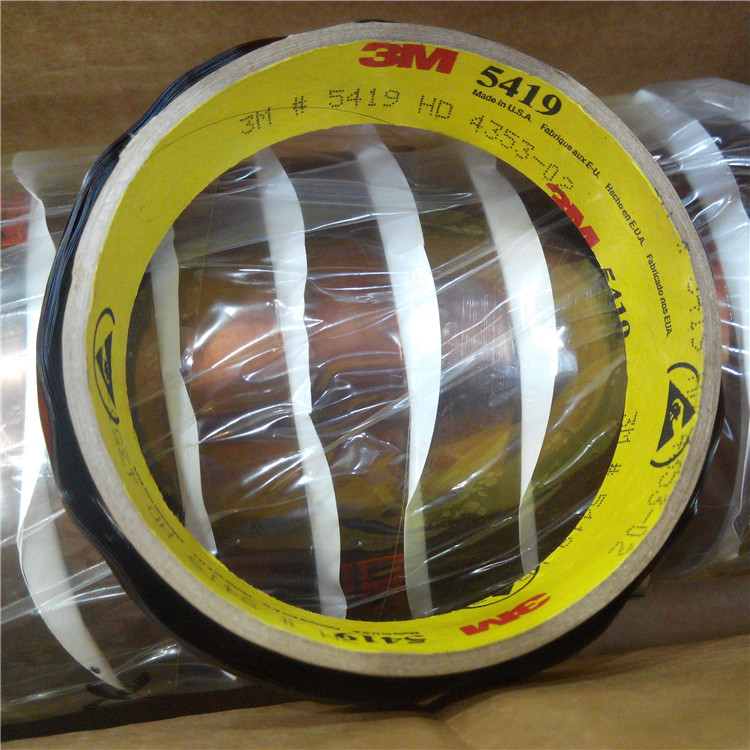

3M Gold Low Static Polyimide Film Tape 5419 Used For Pcb Solder Masking

wide can be choose from 1mm -635mm

Product Specification:
  • Name : 3m 5419 polyimide tape
  • Size : 635MM*33M
  • Color : Gold
INQUIRY NOW
Product Details
Specifications

Adhesion to Stainless

20 oz/in

Adhesive Type

Silicone, Silicone Adhesive

Application Category

Protection

Applications

Solder Masking Tape

Backing Material

Polyimide Film

Color

Gold

Length

36 Linear Yard

Performance Features

Flame Retardant (UL510FR), Halogen Free, No Adhesive Residue

Primary Liner

None

Product Series

5419

Tape Type

Low Static Polymide Film

Temperature Range (Celsius)

- 73 Degree C to 260 Degree C, -73C - 260C

Temperature Range (Fahrenheit)

- 100 Degree F to 500 Degree F, -100F - 500F

Tensile Strength at Break

33 lb/in

Tensile Strength at Break (metric)

578 N/100mm

Total Thickness (metric)

0.07 mm

Solder Masking Tape, 3M Gold Film Tape 5419, 3m 5419 polyimide tape

Details

·       DuPont Kapton(R) polyimide film does not soften at elevated temperatures, thus the film provides an excellent release surface at elevated temperatures Solder Masking Tape, 3M Gold Film Tape 5419, 3m 5419 polyimide tape

·       No rework required, enabling high productivity

·       Protects surfaces helping reduce replacement parts

·       Available on cardboard or polyethyelene core

Solder Masking Tape, 3M Gold Film Tape 5419, 3m 5419 polyimide tape

3M Gold Film Tape 5419 with DuPont™ Kapton® polyimide film and silicone adhesive used for PCB solder masking and other high temperature applications. Low static. Gold, 2.7 thick. 3M Gold Film Tape 5419 Used For Pcb Solder Masking

  Solder Masking TapeSolder Masking Tape
