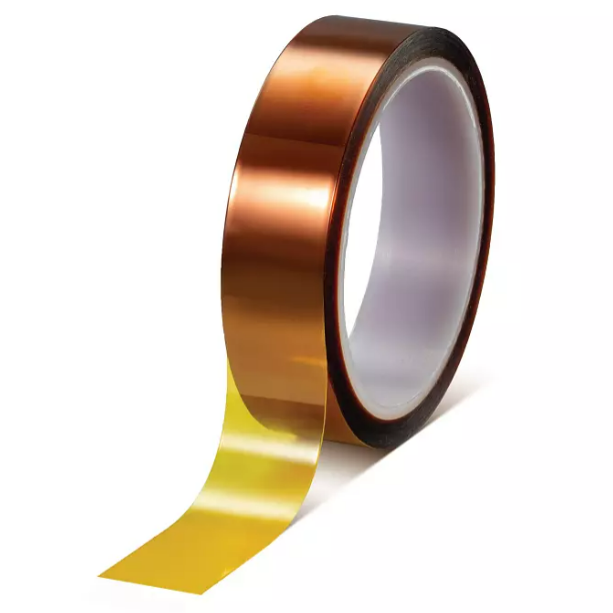

tesa 51407 Standard Grade Polyimide Tape 260°C

tesa® 51407 is a standard grade polyimide tape with a silicone adhesive that has been specially developed to provide a solution for applications which require high temperature and chemical resistance.
tesa® 51407 is used for various applications, especially for wave soldering, thermal insulation and cable wrapping as well as masking during powder-coating processes where the tape enables sharp color edges and offers excellent paint anchorage. The polyimide tape's silicone adhesive system makes the tape extremely heat-resistant, withstanding extreme temperatures of up to 260°C in continuous applications. tesa® 51407 standard grade polyimide tape is also available in a liner version for die-cuts.


• High chemical resistance and dielectric strength
• Residue-free removability for masking applications
• Flame retardant according to UL510 and DIN EN 60454-2 (VDE 0340-2):2008-05, clause 20
• High temperature resistance (up to 260°C)

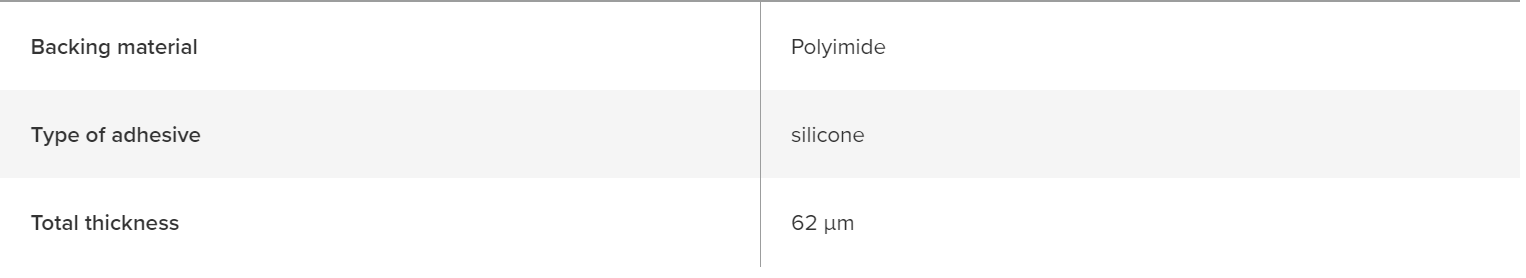

Product Construction

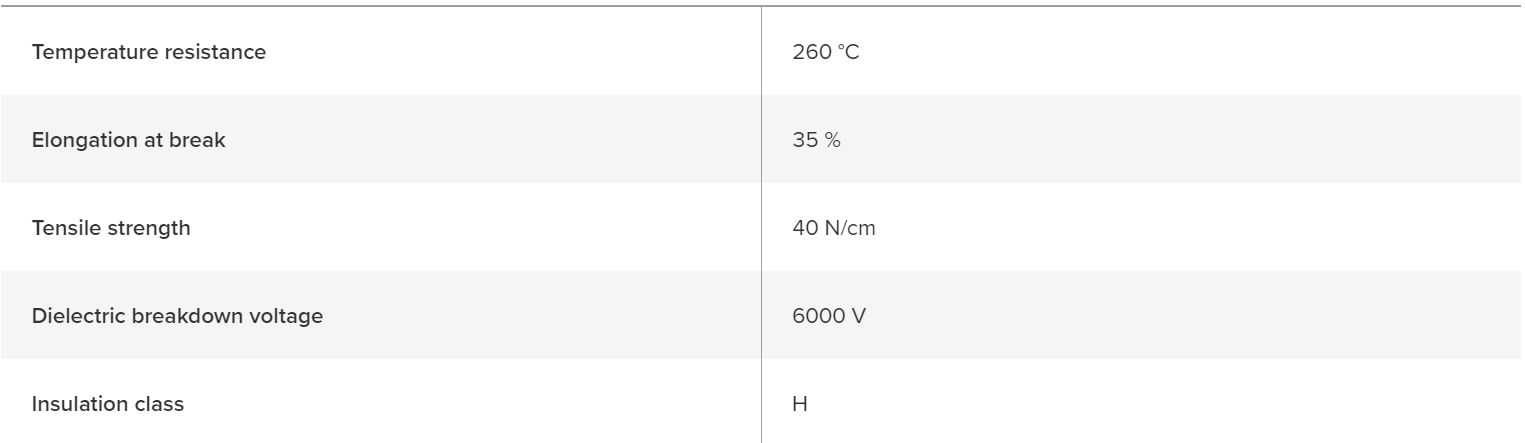

Properties / Performance Values

• tesa® 51407 is recommended for high temperature masking, e.g. powder coating, galvanizing
• The standard grade polyimide tape can be used for chemical production processes and wave soldering, e.g. during circuit board assembly
• Suitable for masking of 3D printing beds or electrical and thermal insulation, e.g. wire-or cable-wrapping
