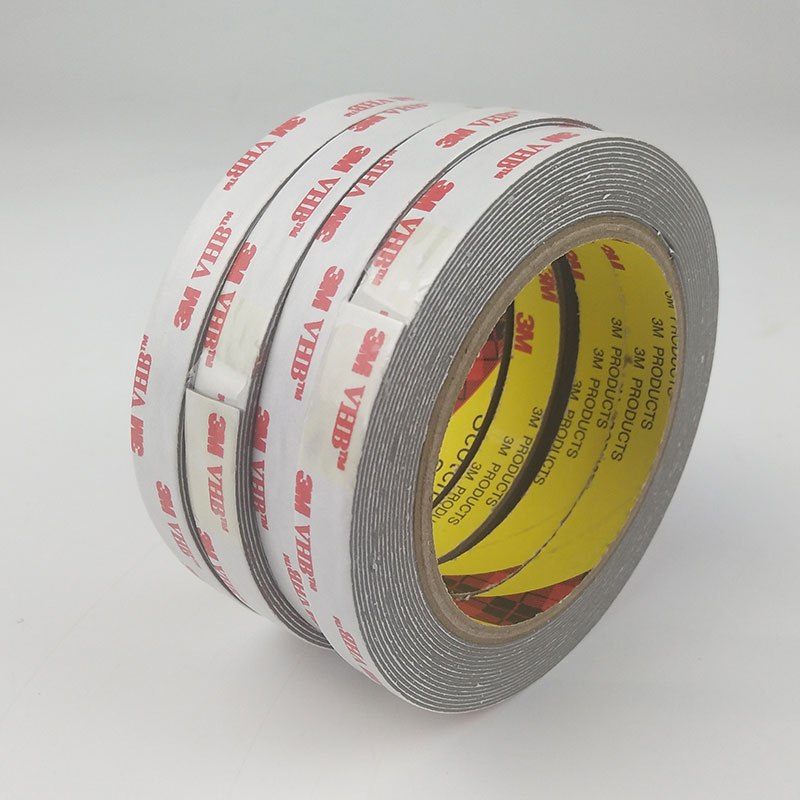

3M VHB Double Sided Tape

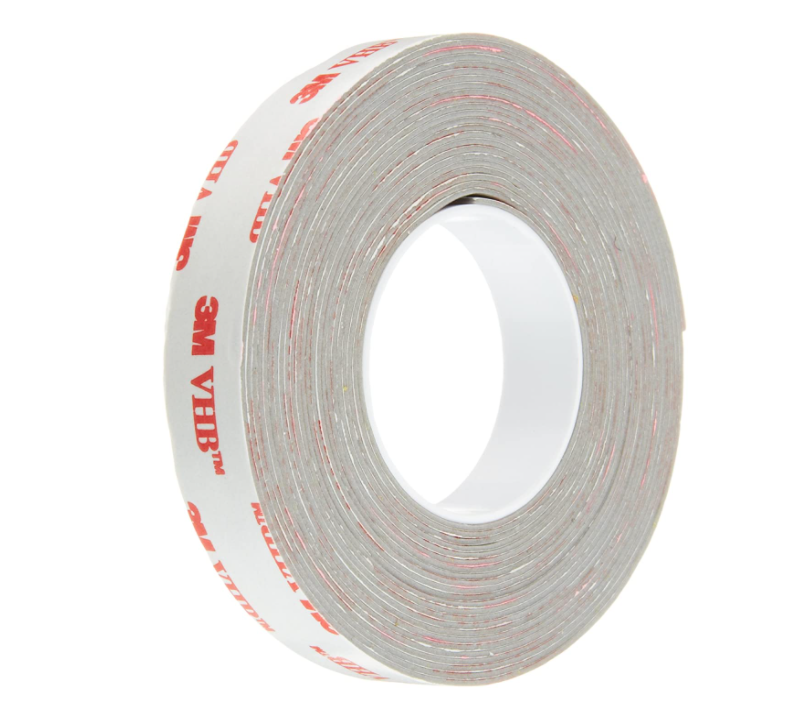

3M RP32 VHB Tape 0.5 in width x 5 yd length (1 Roll),Gray

die-cut VHB tape any shape

Product Specification:
  • Name : 3M RP32 VHB Tape
  • Size : 0.5inch x 5yards
  • Color : Gray
INQUIRY NOW
Product Details

3M VHB RP32 is a gray, 0.032 in (0.8 mm), multi-purpose acrylic adhesive with a conformable foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides good strength and durability. It offers design flexibility with its viscoelasticity and can bond to a variety of surfaces even at lower temperatures.

Thickness 0.8mm(0.032inch)
Color Gray
Adhesive acrylic
Size 0.5inch x 5yards
Series  VHB Tape

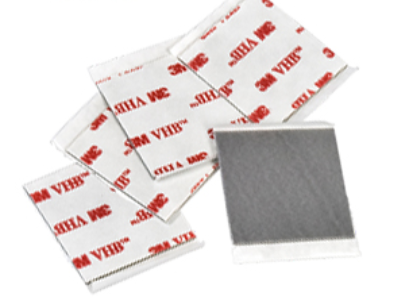

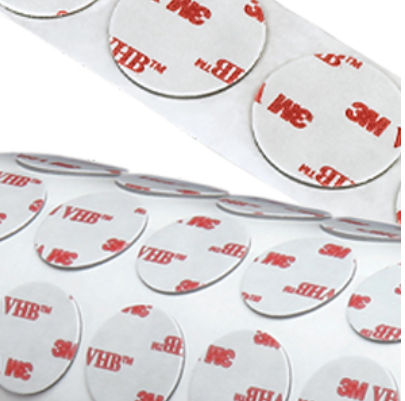

Custom Die-cut VHB tape

Many times, the most time-consuming part of bonding applications is cutting the tape to size, trimming it and then forming the tape to the configuration needed. Especially the if the same cutouts are required again and again.

We offer many shapes and sizes, so instead of spending a lot of time cutting out the shapes for your assembly, use our die-cut 3M VHB Tape RP32.

Our die-cut VHB tape will help solve your project challenges, cut costs, improve performances and create efficiencies in your assembly process.

die-cut VHB tapedie-cut VHB tape

Same Series with different thickness.

Product RP16 RP25 RP32 PR45 RP62
Thickness 0.4mm 0.6mm 0.8mm 1.1mm 1.55mm
Density 45 lb./ft.3 (720 kg/m3) 45 lb./ft.3 (720 kg/m3) 45 lb./ft.3 (720 kg/m3) 45 lb./ft.3 (720 kg/m3) 45 lb./ft.3 (720 kg/m3)
Peel Adhesive 12 lb./in. width (210 N/100 mm) 17 lb./in. width (300 N/100 mm) 18 lb./in. width (315 N/100 mm) 20 lb./in. width (350 N/100 mm) 20 lb./in. width (350 N/100 mm)
Tape Color Gray Gray Gray Gray Gray
